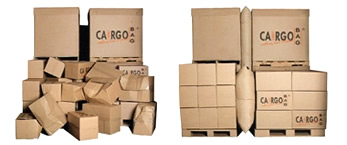

Click to enlarge
Synpack – dunnage bags for load securement

Dunnage Bags


Synpack – dunnage bags for load securementUnder the CairgoBag label and prescriptions, manufacturing is done in countries as the United States, Mexico, Finland and Asia.

The dunnage bags are tested and approved by the AAR (Association of American Railroads). If you want to read about this certification, you can contact us.


On this page you will find all the information you need to know about dunnage bags and the 'model & sizes sheets':

CairgoBag models & sizes

CairgoBag dunnage bags are available in several sizes, strengths and with different inflating systems. Our regular sizes are:

Sizes in cm:
60x120
90x  90
90x120
90x165
90x180
120x180
120x210
120x240

Different sizes are available on request, please contact us for the possibilities.

CairgoBag inflating systems

Up

Synpack – dunnage bags for load securementWhich inflating system to use depends on the demands of the user.
If, for example, you don't want to re-use the dunnage bag, but it needs to inflate very fast; then the FastFill system is suitable for you.

Read more...

CairgoBag materials

Up

The materials that Cairgo uses to manufacture the bags are the best you can get. Each material has its own specifications.

Paper Paper bags are made of high-quality moisture resistant Kraft paper and have a polyethylene (PE) inner liner that holds the air.
Polywoven Polywoven is a new material in the dunnage bag industry. It is a strong and long-lasting material, that is weatherproof resistant and has a excellent resistance to harsh chemical environments. Ideal for the reusable dunnage bags.

Paper dunnage bags

Up

Synpack – dunnage bags for load securementPaper bags are available with several inflating systems, finishing's and in different strengths, also called ply's. The paper bags consist of three basic parts. The outer kraft paper, the inner polyethylene bladder and the valve. The paper bags are ideal for one-time use, because they are recyclable.

Synpack – dunnage bags for load securementCairgoBag dunnage bags consist of three basic parts. The outer kraft paper liner, the inner polyethylene (RE) bladder and the valve. Once the paper liner and PE bladder are separated, they can be recycled and only the valve must be thrown away.

Ply

Up

Synpack – dunnage bags for load securementThe paper dunnage bags are available in several strengths. The strength depends on the number of layers or ply's. The more layers, the stronger the bag is. Each ply has a maximum inflation, indicated by PSI.

Synpack – dunnage bags for load securement

Finishing

Up

Synpack – dunnage bags for load securement

The finishing indicates the way the dunnage bags are closed up at the bottom. The paper bas have several finishing's as you can see the right.

Polywoven dunnage bags

Up

Synpack – dunnage bags for load securementPolywoven is a new material in the dunnage bag industry. It is a strong and long-lasting material, that is water resistant and thus ideal for the reusable dunnage bags.

The polywoven bags are available with different valves but all have the same finishing; namely a sewn end.

Level

Up

The poly-woven dunnage bags are available in several strengths also called levels. The strength depends on the number of grams per square metre. The coloured stripe on the bag indicates which level it is.

Synpack – dunnage bags for load securement

Finishing

Up

As indicated in the text above, the polywoven bags are only available with the SE finishing.

Synpack – dunnage bags for load securement

CairgoBag sizes and void

Up

This is an indication of sizes we have in our assortment. For more information about the available sizes contact us at: info@synpack.nl.

Available sizes
Size width60-150 cm
Size length 90-300 cm
Max. void5 till 45 cm depends on bag size

CairgoBag specials

Up

Cairgo also has some special dunnage bags for specific applications.

Synpack – dunnage bags for load securementAR abrasion resistant
These bags are manufactured with Kraft linear board. Because of this the bag easily slides into narrow voids and literally stands up in a void making installation and inflation much simpler. Furthermore because of the material, the bag stays strong and intact.
